T8 TUBE 15, 18 or 22W1200 (100-347V) cUL, UL, DLC, CERTIFIED WITH INTERNAL OR EXTERNAL DRIVER

Category:

Description

Basic Data

Model number: T8-15W1200 OR 18W1200 OR T8-22W1200
Power consumption:15 watts, 18 watts or 22 watts
Led chip: Epistar ,Cree and Other brand
Led number:280 pieces of SMD 3528 led or 110 pieces of SMD 3629 and SMD2323
Dimension(mm): Diameter:26mm Length:1198mm
Weight: 308.4 g
Lifespan: 50000 hours
PC cover: Transparent/Striped/Frosted Power Supply
Efficiency: 0.99
Certificates: DLC, cUL, UL, FCC, Lighting Facts
Can be dimmable and non-dimmable
External Class 2 Driver
Fa8 lamp base, G13 lamp cap base and rotated cap base available
Two sides connection led tube with internal driver have cUL and ULus
cULus Listing File number: E358903 and E358956
DLC for one driver run two pieces of led tube (Except Rotated
end cap type).
DLC V2.1 on Four-Foot Linear Replacement Lamps (Except
Rotated end cap type) models name as below:
T8-(15, 18, 22)W1200 BOXX (3000K Frosted)
T8-(15, 18, 22)W1200 BOXX (3500K Frosted)
T8-(15, 18, 22)W1200 BOXX (4000K Frosted)
T8-(15, 18, 22)W1200 BOXX (4500K Frosted)
T8-(15, 18, 22)W1200 BOXX (5000K Frosted)
T8-(15, 18, 22)W1200 (3000K Clear)
T8-(15, 18, 22)W1200 (3500K Clear)
T8-(15, 18, 22)W1200 (4000K Clear)
T8-(15, 18, 22)W1200 (4500K Clear)
T8-(15, 18, 22)W1200 BOXX (5000K Clear)
Multiple Driving Type: 1,One driver for two pieces of led tube
2,One driver for three pieces of led tube

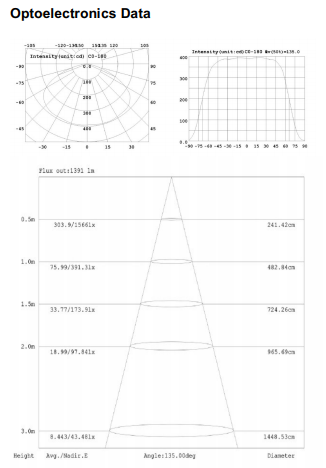

Optical Parameters
Luminous efficiency: more than 110lm/w
luminaire efficiency: 90%
Color Temperature:
Warm White: 2700-3500K   1980 lumens
Neutral White: 3500-5000K  2050 lumens
Cool White: 5000-7000K      2150 lumens

Electronical Parameters
Input Voltage: AC100-347V
Frequency: 50-60Hz
Power Supply Efficiency: 90%
PFC: >0.99

cULus LED T8 tube light
1) cULus approved led T8 tube light
2) 110 lm/w,100-277VAC, PF>0.99, Class 2 Driver
3) Aluminum base and Housing
4) clear/frosted/strip UL Code: E358903 E358956
UL standard: UL1993, UL8750 and UL 1598C
Warranty: 5 years

Other Parameters
Operating Temperature (-20-50℃)
Stock Temperature: 0-50℃
Main Material: Aluminum Base + Aluminum Housing
Life span:50000 hours

Advantages
1) Energy saving about 70%;
2) Long life span more than 10 years;
3) No infrared rays, no ultraviolet radiation, no thermal effect;
4) Ultra slim and unlimited design and various dimensions are available;
5) Soft and wide light emitting;
6) Special circuit design, avoided the single broken LED influence problem;
7) High efficiency constant current drive system, with heat protection system, can work under unstable voltage;
8) Instant start, no flickering, no humming, no RF interference.
