T8-18W1200 (100-347V) cUL, UL, DLC, TUV MARK, SAA AND ERP CERTIFIED WITH INTERNAL AND EXTERNAL DRIVER

Category:

Description

The Exceptional LED light provides general illumination for homes, offices, restaurants, hotels, malls, buses, trains, warehouses and parking lots.

This is convenient task lighting for cabinets, cupboards, laundry rooms and workshops in your home.

Retail display lighting for the articles in your stores and shops.

Back lighting for square billboards or advertisement boards.

Basic Data
Model number: T8-18W1200
Power consumption: 18 watts
Led chip: Epistar, Cree and Other brand
Led number: 280 pieces of SMD 3528 led or 110 pieces of SMD 3629 and SMD2323
Dimension(mm): Diameter: 26mm Length: 1198mm
Weight: 367.4 g
Lifespan: 50000 hours
PC cover: Transparent/Striped/Frosted
Power factor: 0.99
Certificates: cUL, UL, FCC, DLC V3.0 (Except Rotated End Cap Type), Lighting Facts, TUV Mark, CE, RoHs, SAA, C-TICK, Reach and ERP

Can be dimmable and non-dimmable
Internal Isolated Driver and External Class 2 Driver
Fa8 lamp base, G13 lamp cap base and rotated cap base available
Two sides connection led tube with internal driver have cUL and ULus
cULus Listing File number:E358903 and E358956

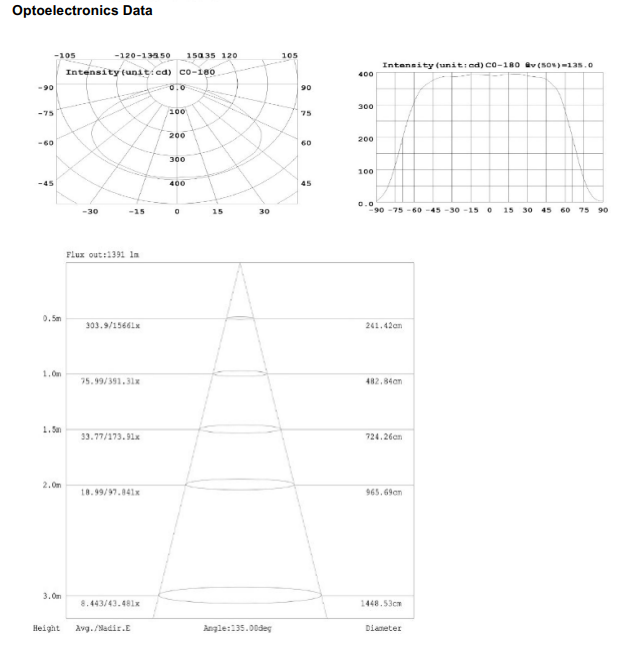

Optical Parameters
Luminous efficiency: more than 110lm/w
Luminaire efficiency: 90%
Color Temperature:
Warm White: 2700-3500K 1980 lumens
Neutral White: 3500-5000K 2050 lumens
Cool White: 5000-7000K 2150 lumens

Electronic Parameters
Input Voltage: AC100-347V
Frequency: 50-60Hz
Power Supply Efficiency: 90%
PFC: >0.99

Other Parameters
Operating Temperature: (-20-50℃)
Stock Temperature: 0-50℃
Main Material: Aluminum Base + Aluminum Housing
Life span: 50000 hours

cULus LED T8 tube light
1) cULs, ULs approved led T8 tube light
2) 110 lm/w, 100-347VAC, PF>0.95, Isolated Driver
3) Aluminum base and Housing
4) clear/frosted/strip
5) UL Code:E358903 E358956 UL standard:UL1993,UL8750 and UL 1598C
6) Warranty: 5 years

Advantages
1) Energy saving about 70%;
2) Long life span more than 5 years;
3) No infrared rays, no ultraviolet radiation, no thermal effect;
4) Ultra slim and unlimited design and various dimensions are available;
5) Soft and wide light emitting;
6) Special circuit design, avoided the single broken LED influence problem;
7) High efficiency constant current drive system, with heat protection system, can work under unstable voltage;
8) Instant start, no flickering, no humming, no RF interference.
